5002 - 5009 Sight tools
5002 M.17 and M.18 foresight push-fit annular ring to increase the external black around iris 5007 Rearsight lock-collar 5005 Rearsight spanner 5009 M.18 foresight lock-collar 5010 M.22 foresight lock-collar 5006 M.17 and M.18 foresight spanner 5008 M.22 foresight spanner

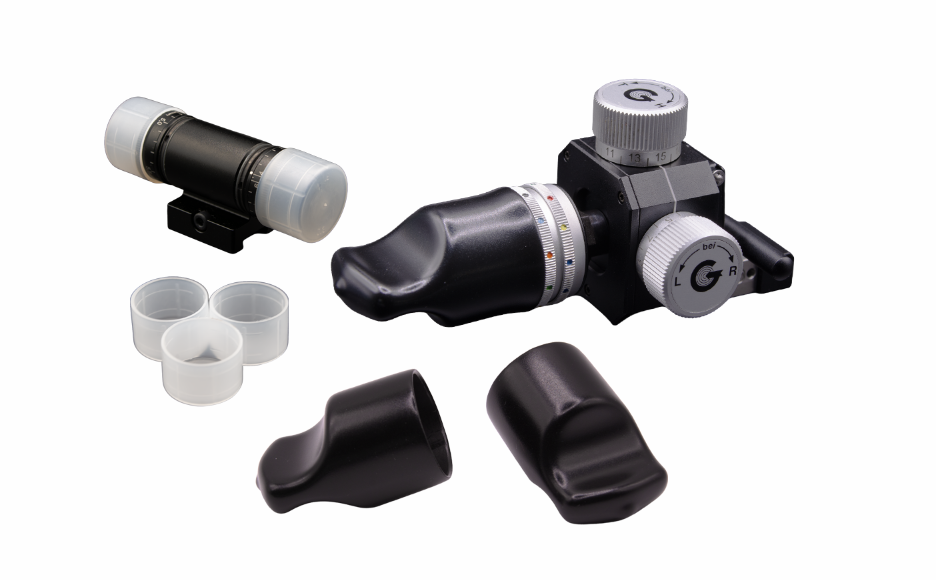

5003 & 5004 Rearsight & foresight dust caps
Simple plastic caps to keep dirt off expensive sights 5003 for rearsights and M.22 foresights 5004 for M.18 and M.17 foresights
501 Lens holder for later Gehmann irises
23mm lens holder allows a prescription lens to be fitted eye-side of your rearsight manufactured exclusively for our own latest irises with a detachable front thread and not carrying our 1.5x magnified diopter The detachable steel front thread of your iris is removed with the factory spanner 501's adaptor thread is then screwed into the front of your Gehmann iris 501, now with your iris mounted, is screwed into your rearsight after loosening the rail carrier's allen screw Mount your prescription lens in the lens holder which may be slid off the rail for easier assembly Reposition the lens holder on the rail as required and lock it in place Positioning of the assembly on your rearsight is easily set as the attachment boss has radial adjustment and is simply secured with the allen screw located in the front body
501-A Lens holder for all irises
23mm lens holder allows a prescription lens to be fitted eye-side of your rearsight For all other manufacturers irises and our own earlier versions that didn't have the ability to remove the front attachment thread Mount your prescription lens in the lens holder which may be slid off the rail for easier assembly Reposition the lens holder on the rail as required and lock it in place Positioning of the assembly on your rearsight is easily set as the attachment boss has radial adjustment and is simply secured with the allen screw located in the front body
501-SB Lens holder for Sauer-Busk
23mm lens holder allows a prescription lens to be fitted eye-side of your rearsight manufactured exclusively for our own latest irises with a detachable front thread and not carrying our 1.5x magnified diopter The detachable steel front thread of your iris is removed with the factory spanner 501's adaptor thread is then screwed into the front of your Gehmann iris 501, now with your iris mounted, is screwed into your rearsight after loosening the rail carrier's allen screw Mount your prescription lens in the lens holder which may be slid off the rail for easier assembly Reposition the lens holder on the rail as required and lock it in place Positioning of the assembly on your rearsight is easily set as the attachment boss has radial adjustment and is simply secured with the allen screw located in the front body Incorporates its own steel mounting thread for use with Sauer-Busk
50300-0 Gehmann diopter 0.0x
Revolutionary world‘s first diopter 0.0x We are proud that we have finally achieved to realize a dream of many sport shooters. Recently disclosed by the German Patent Office and now available. A diopter correction WITHOUT magnification!  The target picture size remains equal and clear throughout the entire dioptric adjustment range of +/- 5 dpt. A multi-lens optical system using a highly refractive type of glass makes it possible to correct spherical defective vision without having any optical magnification. In combination with our cylindrical lens system 579 for shooters of all classifications, we are finally able to provide a 100 % substitute for shooting glasses without any magnification which can be used by all shooters. Shooting lenses are at a natural disadvantage to the diopter 0.0x. This is because a shooting lens is made to correct visual defects at the time the shooter is tested. Throughout the day, dependant on sugar and fatigue levels, the eyesight can change rendering the lens inefficient. The advantage compared to usual shooters‘ frames is the possibility to correct the spherical and astigmatic defect through slight fine adjustments any time, while neglecting the need of time-consuming shooting frame setups. Patent pending.  According to the latest DSB rules approved without restriction for DSB (German Shooting Sports Federation). Made in Germany
50300MC Gehmann 1.5x diopter only
1.5x magnification with -4.5 to +4.5 diopter correction Retro-fittable to all our irises with detachable thread Identifiable by the back-plate which receives the narrow body-lock key for detachment  Either diopter is then simply locked to the iris body and used as before Silver
50309 Gehmann 1.5x diopter only
1.5x magnification with -4.5 to +4.5 diopter correction Retro-fittable to all our irises with detachable thread Identifiable by the back-plate which receives the narrow body-lock key for detachment  Either diopter is then simply locked to the iris body and used as before Black
507 6 push-fit coloured ring set
Fits all standard 1“ rearsight discs Available in: red, blue, green, yellow, light grey and black Gives an optical illusion that can be used to your advantage for centralizing eye to peep-hole Manufactured with anti-glare material
508 6 push-fit coloured ring and filter set
507 matt rings with six press-in optically flat 14mm glass filters: yellow, green, orange, brown, light and dark grey Enables use of your favourite colour ring with one particular filter Very easy to clean Coloured rings are designed to both hold and protect the filters
509 Rearsight mirror disc attachment
Brings a new concept to rearsight disc attachments with a reflective mirror towards the shooter's eye bearing a contrasting black insert disc Concentrates the focal point of the target in the shooter's mind Fits all standard 1" rearsight discs or irises
577 Gehmann thread adaptor
Allows our 1.5x irises to be used without magnifyer The magnifyer is unscrewed leaving just your iris 577 is then fitted and our iris refitted to your sight Made from steel for ultimate durability
577-K Adaptor
enables combination of 530 and 544MC irises with CLS 579
579 Cylindrical lens system, 0-2% Sphere
Until now shooters suffering from astigmatism have been obliged to use shooter's spectacle frames with their inability to adapt to constant changes in eyesight whether it be day to day or even hour by hour. Subsequently large number of shooters stop shooting as a result due to poor scores and frustration - but not any more. Opthalmic examination will accurately measure and diagnose your symptoms giving an opportunity to do something about them. If you suffer from the common problems of myopia (short-sightedness), hypermetropia (long-sightedness) or astigmatism - we can cure them all with the use of 570-579 as an example (see page 15). The device is a combination of optical correction for both axis and astigmatic problems. Axis is set against the rim markings 0 - 180° then locked in place with three allen screws. Sphere is set by use of the two levers which are used in matched but opposing movements for day to day eyesight needs. Depending on levels of eye fatigue, sugar levels etc., your eye sight can change, but with a simple click of the levers, perfect focus can be obtained once again. We offer two options: 579 0 - 2% (involves 90% of sufferers statistically). 579-4 0 - 4% (involves 2 - 6% of sufferers statistically) To fit either is extremely simple but requires partial dismantling of your iris using the U-spanner originally supplied. A replacement can be ordered if needed. Fitting requires one of our adaptors so please look at the list of our products together with the illustrations below. The adaptor slides inside 579`s body and locked into place with three small allen screws. Each adaptor is internally threaded to allow the 579 to be fitted on your iris. This is done using your existing irises front thread - except 500, 501MC, 510 and 510-S which require 577 due to construction method. If attaching to a straightforward iris (as 550) there is nothing to do - however if you wish greater sight correction then 50309 (black) or 50300MC (silver) diopter is required. Fitting to our unit with existing diopter, procedure is straightforward as described above. Assembly and user manual are included. According to the DSB rules approved without restriction for DSB (German Shooting Sports Federation). Setup a CLS
579-4 0 - 4% Sphere
Until now shooters suffering from astigmatism have been obliged to use shooter's spectacle frames with their inability to adapt to constant changes in eyesight whether it be day to day or even hour by hour. Subsequently large number of shooters stop shooting as a result due to poor scores and frustration - but not any more. Opthalmic examination will accurately measure and diagnose your symptoms giving an opportunity to do something about them. If you suffer from the common problems of myopia (short-sightedness), hypermetropia (long-sightedness) or astigmatism - we can cure them all with the use of 570-579 as an example (see page 15). The device is a combination of optical correction for both axis and astigmatic problems. Axis is set against the rim markings 0 - 180° then locked in place with three allen screws. Sphere is set by use of the two levers which are used in matched but opposing movements for day to day eyesight needs. Depending on levels of eye fatigue, sugar levels etc., your eye sight can change, but with a simple click of the levers, perfect focus can be obtained once again. We offer two options: 579 0 - 2% (involves 90% of sufferers statistically) 579-4 0 - 4% (involves 2 - 6% of sufferers statistically). To fit either is extremely simple but requires partial dismantling of your iris using the U-spanner originally supplied. A replacement can be ordered if needed. Fitting requires one of our adaptors so please look at the list of our products together withthe illustrations below. The adaptor slides inside 579`s body and locked into place with threesmall allen screws. Each adaptor is internally threaded to allow the 579 to be fitted on your iris. This is done using your existing irises front thread - except 500, 501MC, 510 and 510-S which require 577 due to construction method. If attaching to a straightforward iris (as 550) there is nothing to do - however if you wish greater sight correction then 50309 (black) or 50300MC (silver) diopter is required. Fitting to our unit with existing diopter, procedure is straight forward as described above. Assembly and user manual are included. With extended range suitable for only a small percentage According to the latest DSB rules approved without restriction for DSB (German Shooting Sports Federation) Setup a CLS
579-I Adaptor
Allows use of 579 lens with 566, 566-R, 566-S, 567, 570, 570-R & PH570
579-II Adaptor
Allows use of 579 lens with our irises 550, 551, PH551, 563, 568, 569, 575, 512MC, 545MC, 568MC & 546MC
579-III Adaptor
Allows use of 579 lens with our irises 500, 510, 510-S, 501M, 564, early Gehmann and other manufacturers irises 579-III & 577-K is for 530, PH530 & 544MC
985 Carry case
Accessory case with deep foam padding Rigid box construction with alloy edges Over centre clip lock Ideal for shooting frames, sights or valuable accessories Size: 20 x 16 x 5cms Supplied free with our frames Available individually
PH577 Adaptor for all PH-irises with magnifyer to fit into Parker-Hale or Redfield
Allows our 1.5x irises to be used without magnifyer The magnifyer is unscrewed leaving just your iris  577 is then fitted and our iris refitted to your sight Made from steel for ultimate durability suits Redfield / Parker Hale
PH999 Thread adaptor for standard irises into Parker-Hale or Redfield
Adaptor for standard irises into Parker-Hale or Redfield Steel construction
SB530A Thread adaptor for Sauer-Busk
Adaptor for standard irises into Sauer-Busk Steel construction
